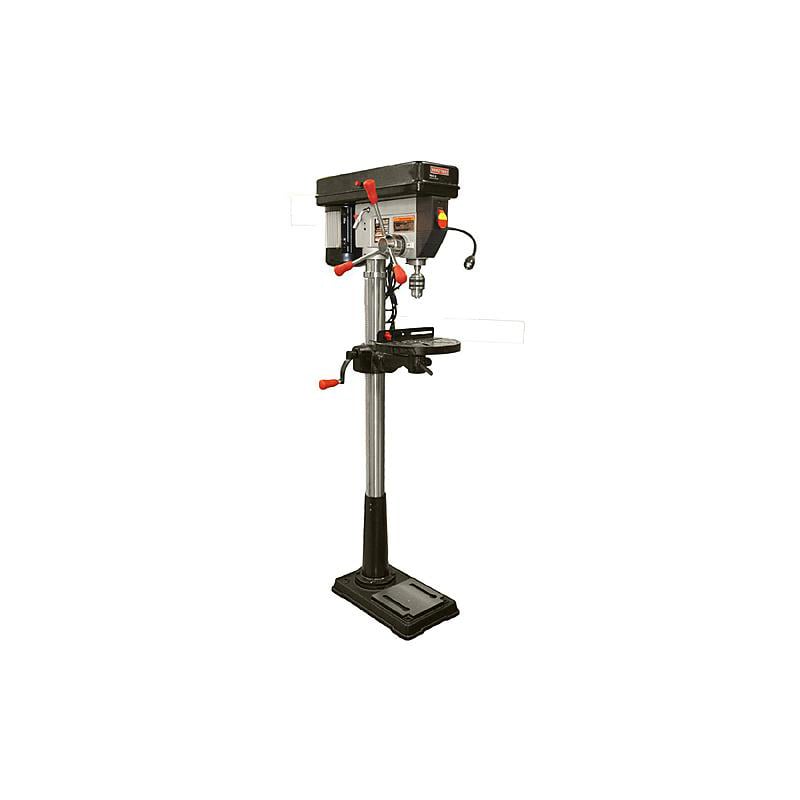

Craftsman ZJ5116B 15-Inch Drill Press

Craftsman ZJ5116B

The Craftsman ZJ5116B 15-inch Drill Press is a heavy-duty shop machine capable of drilling a precise and clean cuts in wood, plastic, aluminum, or steel. The machine has a powerful motor with a 3/4 HP motor that operates with 5/8″ chuck. The floor-mounted drill press also has a spindle speeds that range from 240 to 3,470 RPM. The flexibility of this tool makes it perfect for swapping between metal or wood. Plus, the Craftsman ZJ5116B comes with a laser guide for more accurate drilling and an LED light that lights up the work service.

Craftsman ZJ5116B Drill Press Features

The Craftsman ZJ5116B drill press has a work table that tilts right or left (5 degrees right, 45 degrees left) and 16 spindle speeds. The work table and base are durable—both are made from cast iron. This model from Craftsman features three molded handles for easy, comfortable gripping.


The Craftsman ZJ5116B stands 61.61″ tall and weighs 130 lbs. The drill press includes a tasklight, fence, rip fence, Allen wrenches, and 5/8″ chuck key.

Craftsman ZJ5116B  15-Inch Drill Press Key Features

  • LED work light and laser guide
  • 16 spindle speeds 240 to 3,470 RPM, 5/8 in. chuck
  • Table can tilt 5 degrees to the right or up to 45 degrees to the left
  • Cast iron table is 11.42″ in diameter
  • Laser guide and LED work light
  • Three handles with rubber grips

Craftsman ZJ5116B  15-Inch Drill Press SpeficationsCraftsman ZJ5116B 15-Inch Drill Press

  • Motor: 3/4 HP
  • Chuck: 0.63″ / 16mm
  • Spindle Travel: 3.23″ / 82mm
  • Spindle Taper: MT2
  • Speed Change: 16
  • Speeds: 240 / 3470 rpm
  • Base Size: 18.11″ x 11.02″ / 460 X 280mm
  • Column: 2.83″ / 72mm
  • Swing: 14.17″ / 360mm
  • Total Height: 61.61″ / 1565mm
  • Weight: 137.79LBS / 62.5kg
  • Warranty: 1 year
  • Includes: Tasklight, fence, rip fence, Allen wrenches, and 5/8″ chuck key
  • Price: $398.99
